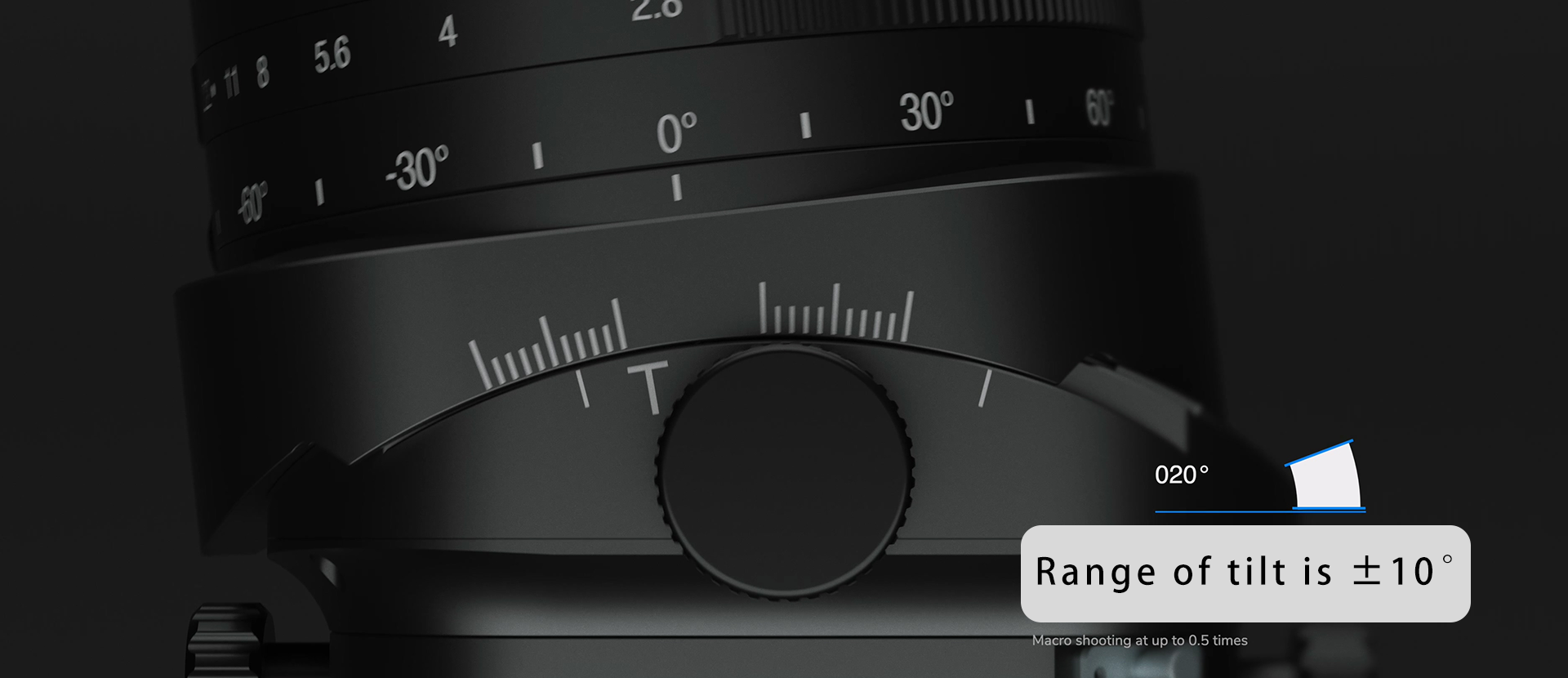

The maximum possible tilt amount of the lens is ±10° adjustment. It enables photographers to manipulate the image plane for both practical and creative effects.

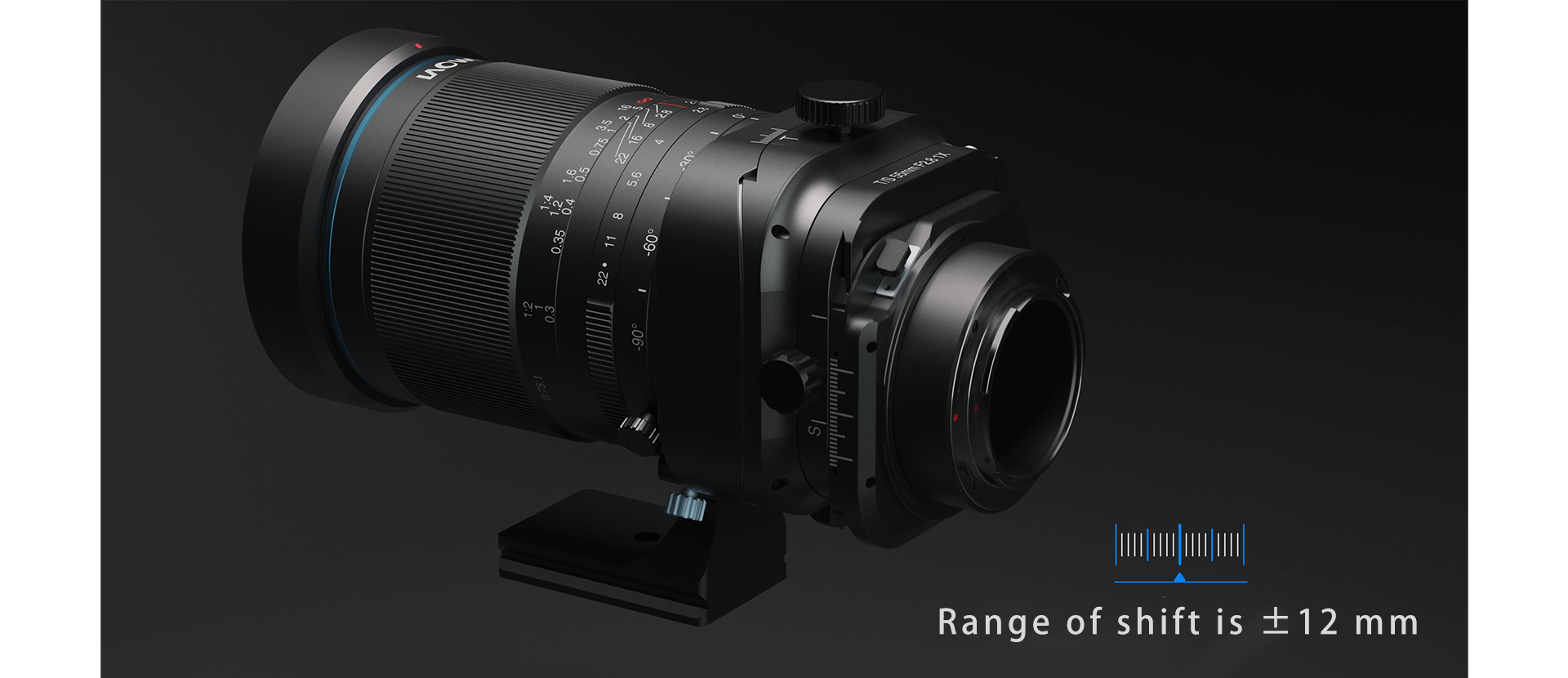

With a maximum shift of ±12mm for full-frame cameras, this feature allows for precise perspective control and easy correction of vertical lines, helping to avoid perspective distortion—ideal for architectural photography.

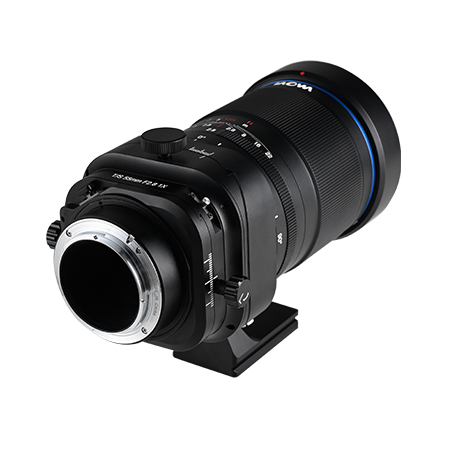

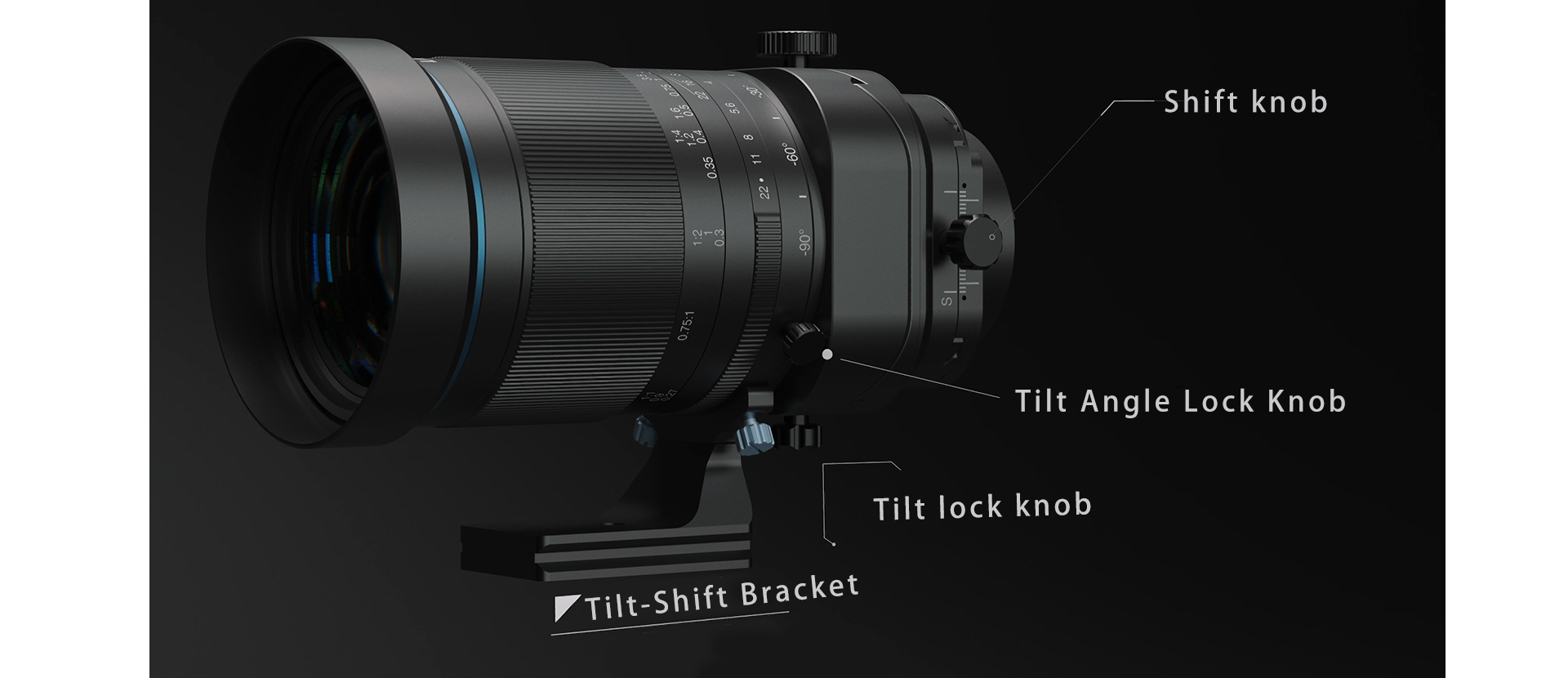

A lens support comes with the lens and can be easily attached to tripod with the Arca-Swiss system.
Using the shift function, panoramas can be easily created through photo stitching.
Low distortion design reduces the time and cost for photographers to make post-production adjustments when shooting commercial advertisements.
This first-of-their-kind tilt-shift lens offer 1:1 magnification of life-size images, capturing extensive details up close. It focus as closely as 27 cm from subjects, allowing photographers to shoot at short distances.
With f/2.8 maximum aperture, the lens can perform outstandingly in a low-light environment.

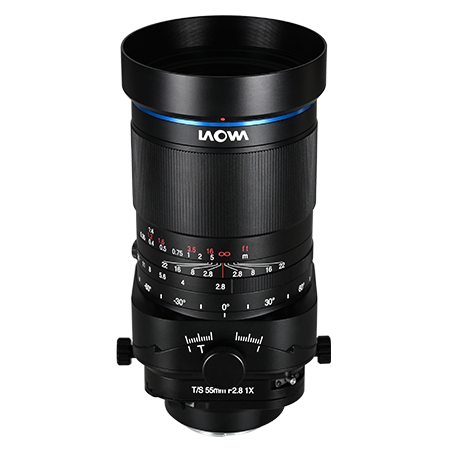

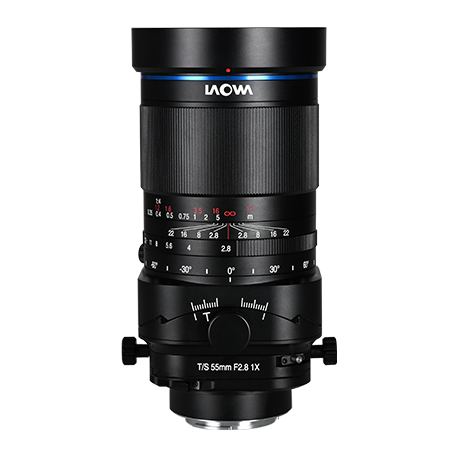

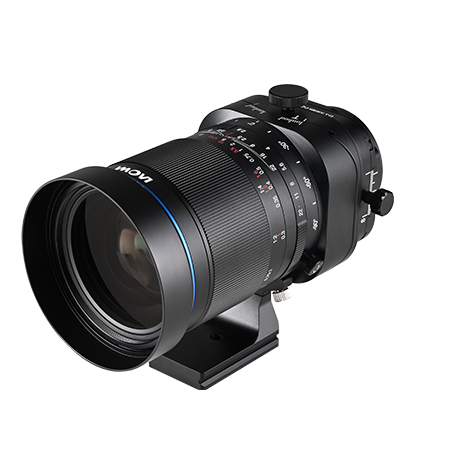

| Name | FFⅡ TS 55mm F2.8 Macro 1X |
| Format | FF |
| Focal Length | 55mm |
| Aperture Range | F2.8-22 |
| Angle of View | 62.7° |
| Lens Structure | 14 elements in 11 groups |
| Shift | ±12mm |
| Tilt | ±10° |
| Min. focusing Distance | 270mm |
| Max. Magnification | 1X |
| Focus Type | Manual (MF) |
| Filter Thread | Ø 77mm |
| Dimensions | Approx. 168.5mm* Ø85mm |
| Weight | 1345g |
| Mounts | E, Z, RF, L mount ,GFX,XCD |

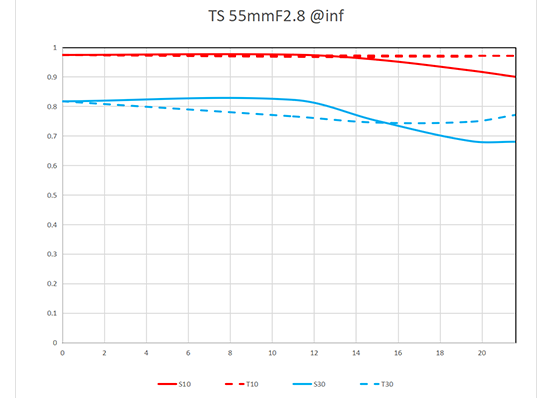

MTF

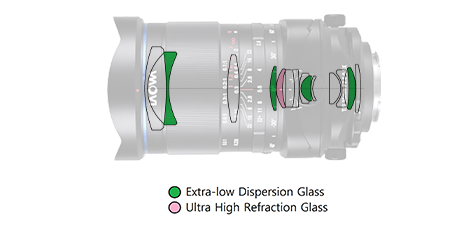

Optical Chart
©文太大叔
FFⅡ TS 55mm F2.8 Macro 1X
©张小胖
FFⅡ TS 55mm F2.8 Macro 1X
©文太大叔
FFⅡ TS 55mm F2.8 Macro 1X
©曹光华
FFⅡ TS 55mm F2.8 Macro 1X
©张小胖
FFⅡ TS 55mm F2.8 Macro 1X
©文太大叔
FFⅡ TS 55mm F2.8 Macro 1X
©曹光华
FFⅡ TS 55mm F2.8 Macro 1X
