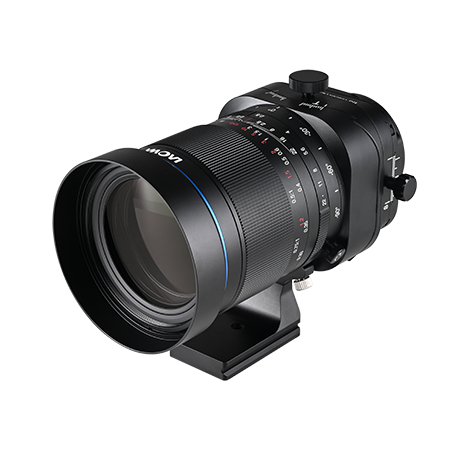

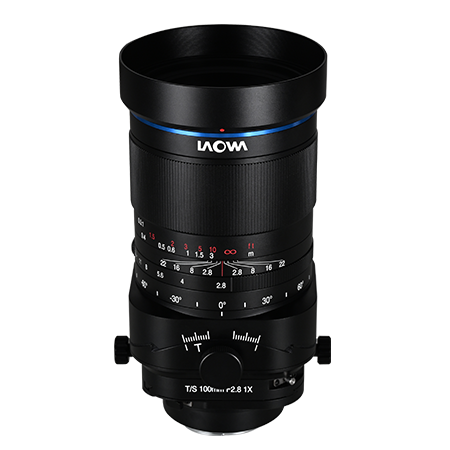

FFⅡ TS 100mm F2.8 Macro 1X

Laowa 100mm f/2.8 Tilt-Shift 1X Macro is the first Laowa tilt-shift macro lens for a full-frame mirrorless camera. It features a precise tilt of ±10°, a shift of ±12mm, and an impressive 1:1 magnification.

Black
XCD
GFX
L mount
Canon RF
Nikon Z
Sony E

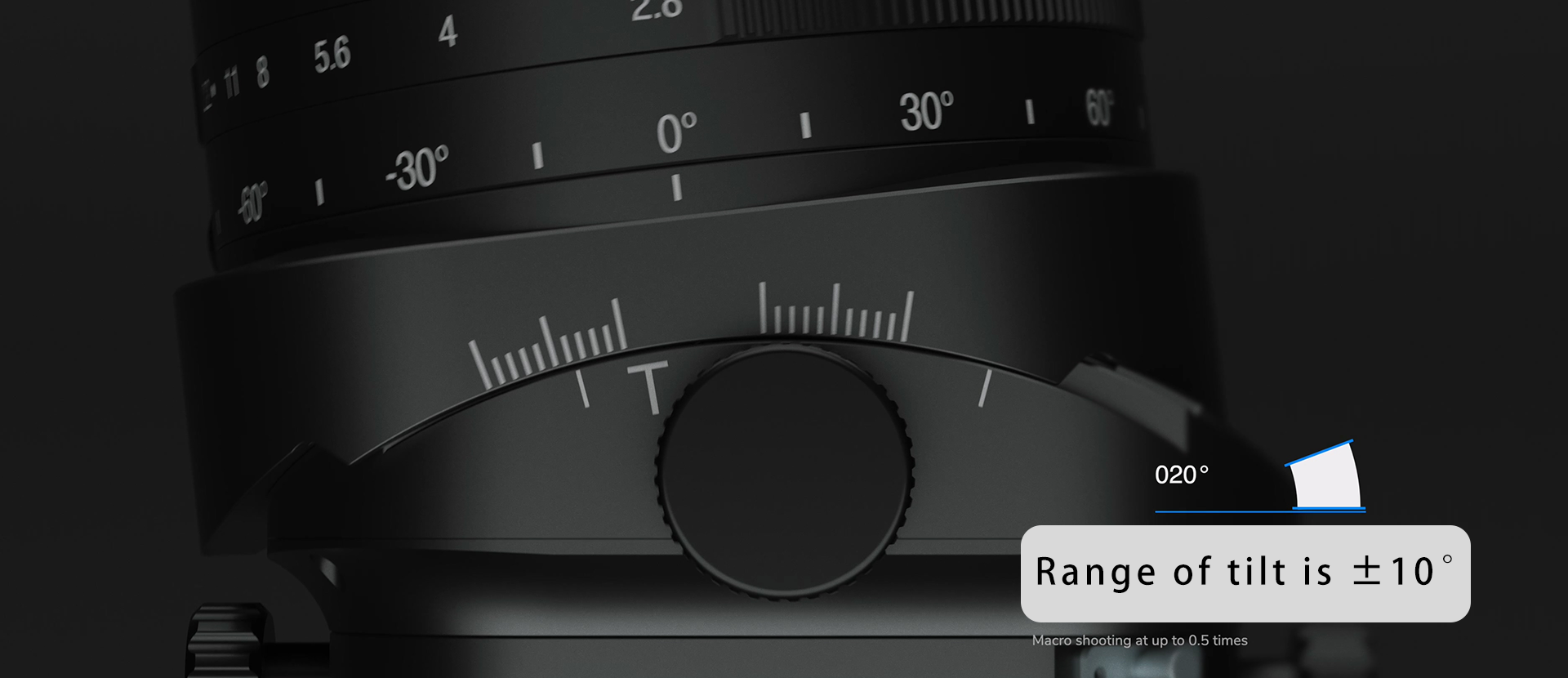

Tilt of ±10°


The maximum possible tilt amount of the lens is ±10° adjustment. It enables photographers to manipulate the image plane for both practical and creative effects.


Range of tilt is ±10o.png

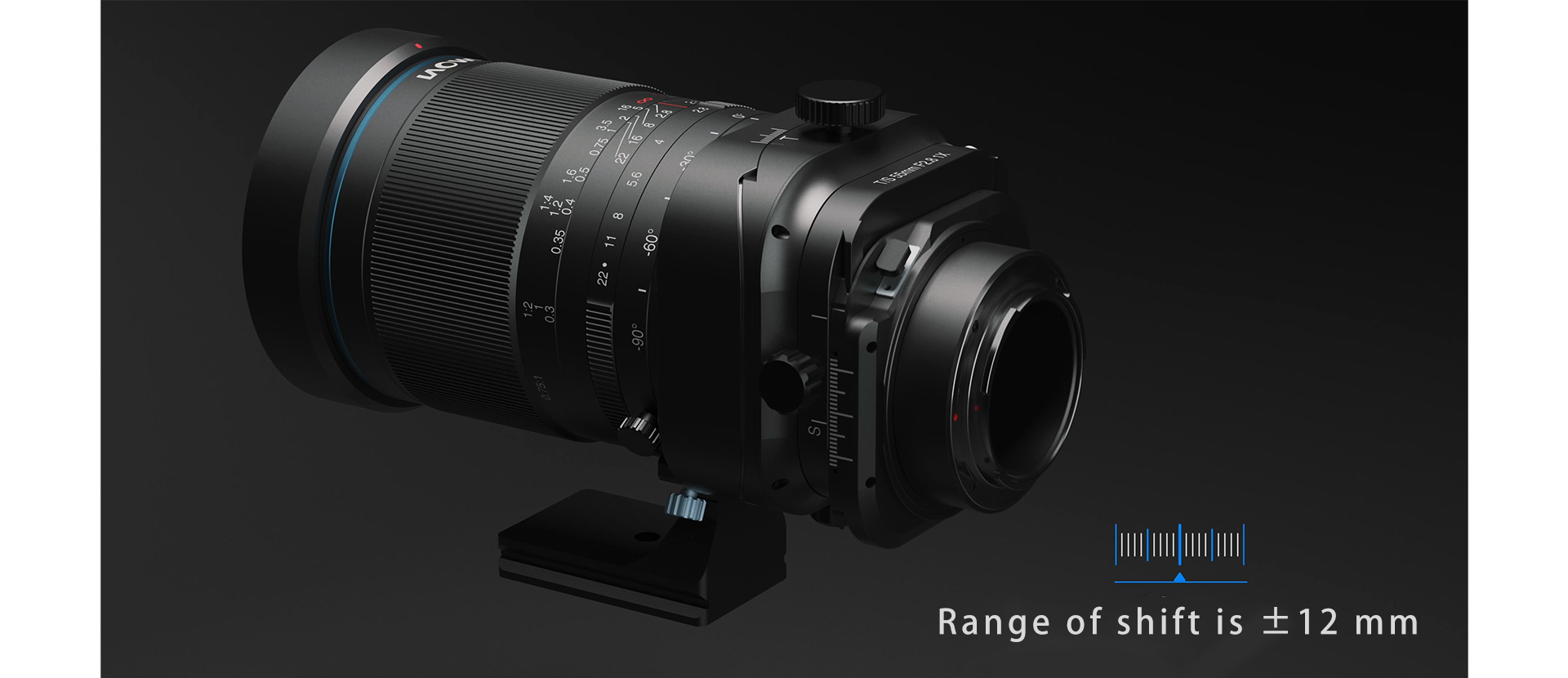

Shift of ±12mm


With a maximum shift of ±12mm for full-frame cameras, this feature allows for precise perspective control and easy correction of vertical lines, helping to avoid perspective distortion—ideal for architectural photography.


Range of shift is ±12 mm.png

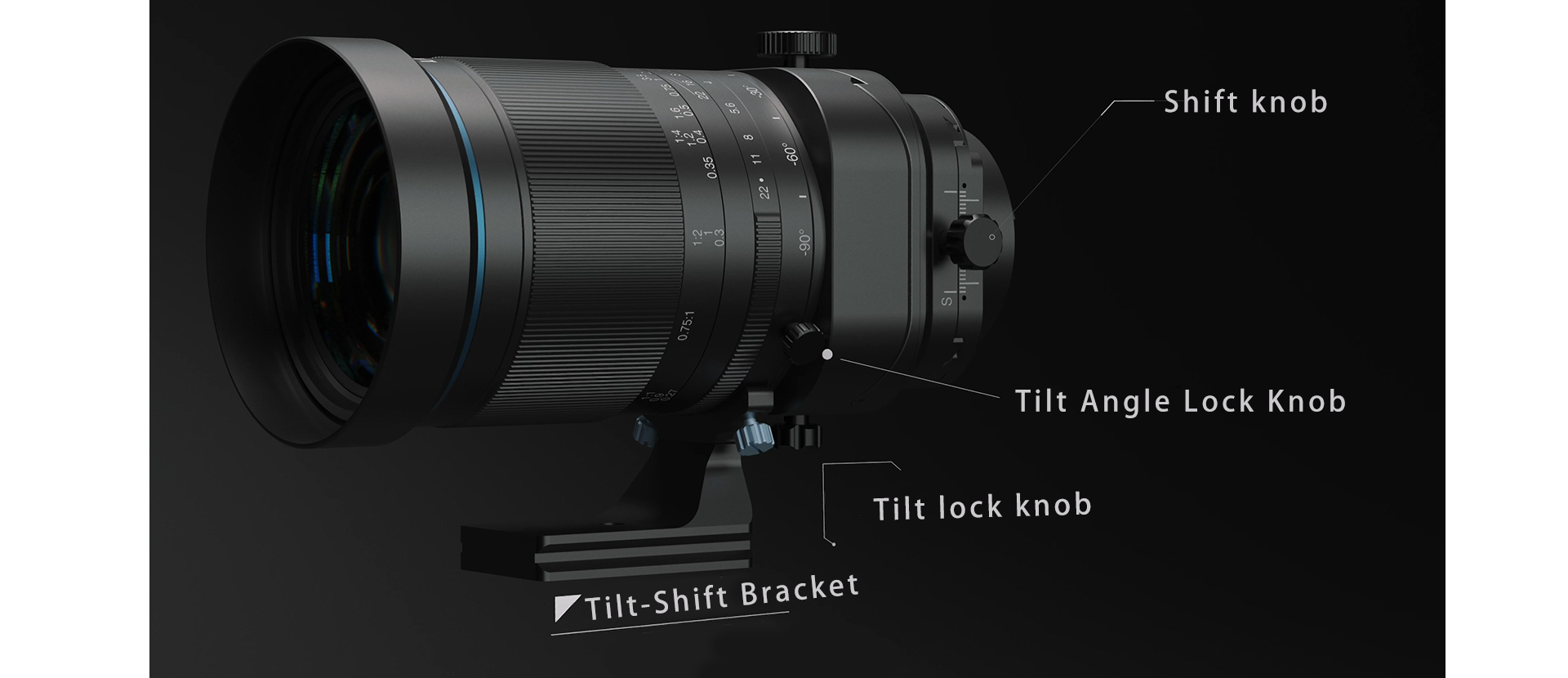

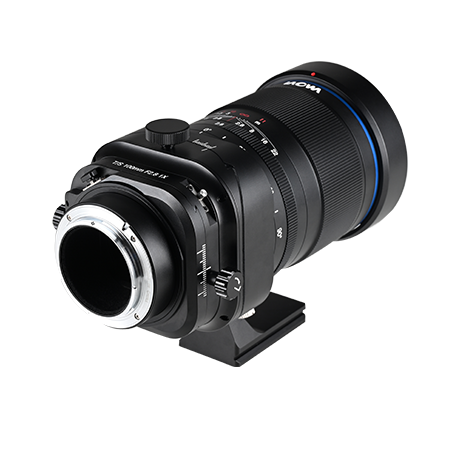

Built-in Lens Support with Arca-Swiss


A lens support comes with the lens and can be easily attached to tripod with the Arca-Swiss system.




Miniature Effect




Seamless Photo Stitching


Using the shift function, panoramas can be easily created through photo stitching.


1月22日 (1)(4)_副本.jpg

Control Plane of Focus


1月22日 (1)(2)_副本.jpg

Low Distortion


Low distortion design reduces the time and cost for photographers to make post-production adjustments when shooting  commercial advertisements.





1x  Magnification


This first-of-their-kind tilt-shift lens offer 1:1 magnification of life-size images, capturing extensive details up close. It focus as closely as 27 cm from subjects, allowing photographers to shoot at short distances.


_DSF0047 拷贝-1_副本.jpg




Excellent Low-light Performance


With f/2.8 maximum aperture, the lens can perform outstandingly in a low-light environment.


DSCF8587 - 副本_副本.jpg


Product specifications

Name FFⅡ TS 100mm F2.8 Macro 1X
Format FF
Focal Length 100mm
Aperture Range F2.8-22
Angle of View 37°
Lens Structure 13 elements in 10 groups
Aperture Blades 15
Shift ±12mm
Tilt 90°
Min. focusing Distance 320mm
Max. Magnification 1X
Focus Type Manual (MF)
Filter Thread Ø 77mm
Dimensions Approx. 162mm* Ø85mm
Weight 1215g
Mounts E, Z, RF, L mount & GFX

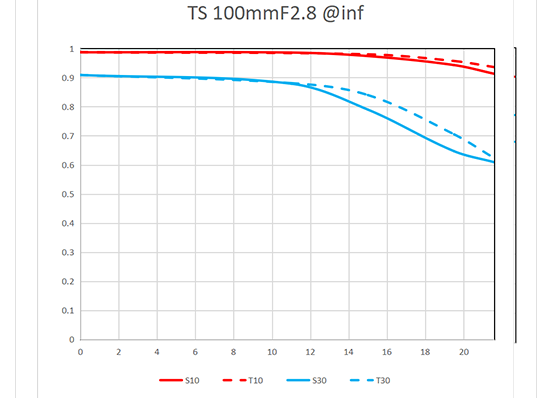

MTF

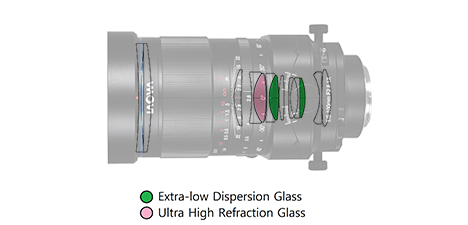

Optical Chart

Optical-pic
